DVR PRO Series Do It Yourself Hidden Camera Kit with DVR

DVR PRO Series DIY Hidden Spy Camera Kit - Make almost anything into a hidden camera yourself!

All Components are separated from the Main Board
The camera, power jack, video jack, IR remote sensor, PIR motion sensor, status LED, battery, and the Micro SD Card Slot are all connected to the main board with long flexible cables. Having each component separated makes it much easier to mount the camera and each component where it is desired.

High Quality Video
1.3 MegaPixel CMOS Camera with 1280x720 Video Resolution delivers a true pro-grade image in conjunction with the built-in DVR that features H.264 video encoding for the best video quality possible.

Hide it Yourself
It can be used as a normal video camera or security camera. Built-in mounting points allow you to attach it with to any surface using small screws or other mounting hardware (not included). The camera is smaller than a fingernail and attaches to the main board with a flexible ribbon cable. It has a pinhole lens with a wide field of view. Only the pinhole lens needs to be exposed. The camera could be further concealed by placing it behind other items with a just a small hole for the lens to see through.

PRO Series Built-in DVR Video Recorder
Advanced DVR recording functions with on-screen-setup menus make it easy to configure the options. The video is recorded internally to a removable Micro SD memory card (sold separately). Works with up to 256GB Micro SD cards. Video storage is approximately 2.5GB per hour of video recorded.

Never run out of recording space
When full this model can overwrite or "re-cycle". In this mode when the SD card is full the oldest video is deleted to make room for the newest recordings so you will always have the latest video available for review.

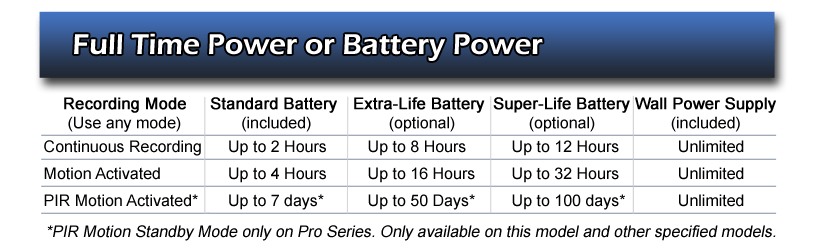

FULL-TIME POWER and/or BATTERY POWER
Includes a 5 VDC Wall Power cord that can provide full-time power and/or charge the battery. The built-in battery can be used to power the camera or as a backup battery. When the power cord is used for main camera power the battery will recharge until full and it will function as a backup battery if the main power goes out.

MOTION DETECTION RECORDING MODE
Both the Lite and Pro Series have video-based motion-activated recording mode. This type of motion detection saves some battery life when it isn't actively recording, but the battery still drains fairly quickly because the camera is always on. The camera needs to stay on to detect motion by "watching" to see if anything is moving in the video. The video recording is triggered instantly when any motion is detected in the video.

NEW! PIR MOTION MODE + SUPER LIFE BATTERY = BATTERY POWER FOR UP TO 100 DAYS!
Using PIR motion sensor mode and the (optional) Super-Life built-in battery the PRO Series model will work for up to 100 days in standby mode with the reserve power to record up to 12 hours of video when motion is detected. It works for that long because the camera/recorder remains in a powered-down state until body heat and movement is detected. This saves an incredible amount of battery power compared to video-motion mode. When using this mode is there is a a brief delay from when motion is detected until recording starts because the camera must power-up before recording can begin.

Wireless Remote Control Included
Control recording modes, start/stop recording manually, plus access on-screen menus and other functions.

Live Video Output and Playback
Includes an analog video output with a mini video jack and mini-jack to RCA cable that when connected will show the live video and on-screen feature menus or playback recorded video files on a regular TV.

Digital Video Playback
The video files are recorded as AVI (H.264) so they can be viewed on almost any PC, Mac, or other devices using popular free software like Windows Media Player or Kmplayer and they can be easily edited by most video editors. Simply remove the Micro SD Card you are using to transfer the files.

Camera Information Camera Type Advanced CMOS Image Sensor Camera Resolution HDTV 720p 1.3 Megapixel Camera Low Light Very Good DVR Information Recording Resolution 1280x720 Remote Control Yes - Advanced Time and Date Stamp Yes Motion Activated Recording Yes - Advanced File Type AVI H264 Recording Location Micro SD Card Memory Card Size up to 256 GB HDTV Recording Rate ~ 2 GB per Hour Standard Resolution Recording Rate ~ 0.75 GB per Hour Photo Snapshot Mode Yes Live Video TV Output Yes Playback on TV with Video Out Yes On Screen Menus Yes Configurable Video Quality Settings Yes Format SD Card with Device Yes Configurable Recording File Length Yes Auto Recycle Storage Overwrite Yes Firmware Upgradable Yes Power Information DC Power Requirement 5VDC AC/DC Wall Power Supply Yes (included) Battery Information - Battery Life Using Motion Activated Recording Modes Standard Battery (included) Up to 4 Hours (Up to 7 Days Standby in PIR Mode) Extra-Life Battery (optional) Up to 16 Hours (Up to 50 Days Standby in PIR Mode) Super-Life Battery (optional) Up to 32 Hours (Up to 100 Days Standby in PIR Mode)

DVR Pro Series Sample Video

SEE THE DIFFERENCE! Compare this camera to other Hidden Cameras on the same screen at the same time with our: Side-By-Side Video Player

Everything you need to make your own Pro-Series hidden spy camera
Flexible cables for all components makes installing the camera easy
Simple to Setup and Use
PC and Mac Compatible
1.3 MegaPixel CMOS Camera
Video Resolution 1280x720
Video Format AVI (H.264)
View Angle 90 degrees
Low Light Illumination 1 LUX
Data Transfer Interface USB 1.1 or 2.0
Memory Micro SD Card Max Size 256GB
Memory Consumption ~ 2GB/hour
Wall Power A/C to 5VDC Adapter included for full time power
Battery Power: Yes (see battery chart above)
Playback Software Windows Media Player or Kmplayer
Dimensions 1.5 x 1.5 x 0.25 Inches

Important Notes Regarding Use and Installation:
This kit should only be purchased or used by persons that are completely familiar with the proper handling, installation, and use of circuit-board level components.
The camera ribbon cable and other components of this item are very fragile.
This item may be easily damaged by impacts, electric discharges, static electricity, and short circuits caused by conductive objects or liquids coming into contact with the components.
Parts of this item will generate heat during charging and during normal operation.
This item should not be installed or used near any flammable materials or vapors
This item should not be installed or used in any enclosed area without adequate venting and/or heat sinks.
The use of incorrect power supplies, batteries, chargers, or other power sources may cause overheating and/or permanent damage to this unit.

	DIY-DVR-V2	DIY-DVR-PRO	DIY-WIFI-DVR-LITE
Camera Information
Camera Resolution	HDTV 1080p	HDTV 1080p	HDTV 1080p
Camera Low Light	Good	Very Good	Very Good
Built-in DVR Video Recorder Information
Recording Resolution	HDTV 1080p	HDTV 720p	HDTV 1080p
Frames Per Second	30FPS	24 FPS	24 FPS
Time and Date stamp	Yes	Yes	Yes
Motion Activated Recording	Yes - Basic	Yes - Advanced	Yes - Advanced
Recording Locations	Internal: Memory Card	Internal: Memory Card	Internal: Memory Card External: Phone, Tablet
Memory Size (Capacity)	Up to 512 GB (optional)	Up to 1000 GB (1 TB) (optional)	Up to 1000 GB (1 TB) (optional)
Memory Card Speed	Class 10 or Higher	Class 10 or Higher	Class 10 or Higher)
User Accessible Memory Card	Yes	Yes	Yes
HDTV Recording Rate	~ 9 GB per Hour	~ 2 GB per Hour	~ 1 GB per Hour
Field of View:	80°	90°	90°
Loop/Recycle Recording	No	Yes	Yes
Remote Control:	Yes	Yes	Remotely Controlled over App
Warranty:	12 Months	12 Months	12 Months
Live Remote Viewing, Recording, and Playback Methods
iPhone, iPad, Android Phone, Tablet	No	No	Yes - Free Advanced App
Windows PC, Laptop	Yes (Via USB)	No	Yes - Free Advanced App (with free emulator)
Video Playback	Computer	Computer	Computer, Mobile App
Internet Live View (WiFi):	No	No	Yes
Live View Methods:	USB to PC	TV or Monitor	Computer,iPhone, iPad,or Android Smart phones and Tablets
Power/Battery Information
AC/DC Wall Power Supply	Yes (included USB cord)	Yes (included AC cord)	Yes (included USB cord)
Battery Info (More Info in the columns below)	Included rechargeable battery with up to 4 hours total motion- activated recording time and standby time	Included rechargeable battery with with up to 100 Days total motion-activated standby time in PIR mode	Included rechargeable battery with up to 4 hours total motion- activated recording time and standby time
Battery Option Information: Recording time (Continuously)	Up to 2 hours with Standard Life Battery Up to 4 hours with Extra-Life Battery Up to 12 hours with Super-Life Battery	Up to 2 hours with Standard Life Battery Up to 4 hours with Extra-Life Battery Up to 12 hours with Super-Life Battery	Up to 2 hours with Standard Life Battery Up to 4 hours with Extra-Life Battery Up to 12 hours with Super-Life Battery
Battery Option Information: Recording time (Motion Activated)	Up to 4 hours with Standard Life Battery Up to 16 hours with Extra-Life Battery Up to 32 hours with Super-Life Battery	Up to 4 hours with Standard Life Battery Up to 16 hours with Extra-Life Battery Up to 32 hours with Super-Life Battery	Up to 4 hours with Standard Life Battery Up to 16 hours with Extra-Life Battery Up to 32 hours with Super-Life Battery
Battery Option Information: Recording time (PIR Motion Activated)	N/A	Up to 7 days with Standard Life Battery Up to 50 days with Extra-Life Battery Up to 100 days with Super-Life Battery	N/A
